The CCAMLR krill synoptic survey
Brief description RMT net
Drawings (kindly supplied by Doug Bone) of the British Antarctic Survey RMT net system are provided for comparison with RMT net systems provided by other nations.
On this page you will find the following diagrams
Dimensions of RMT8 net shown in side view
Dimensions of RMT 1 are shown in this side view
Front view of RMT8+1 showing dimensions
Front view of RMT8+1 net with main parts labelled
Eventually it is hoped that details of all the nets used will be available on this page.

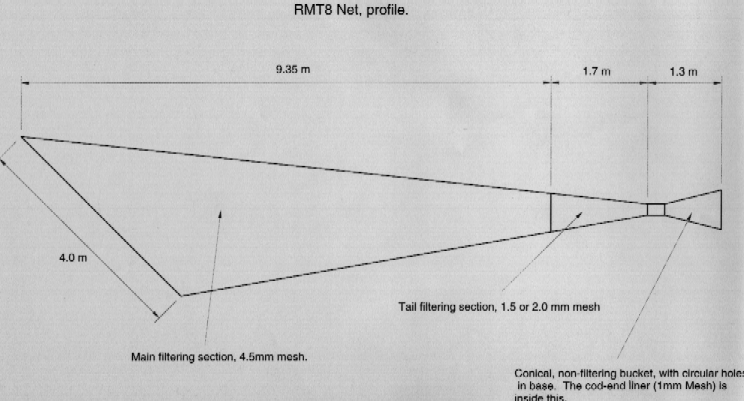

Dimensions of RMT8 net are shown in the side view below

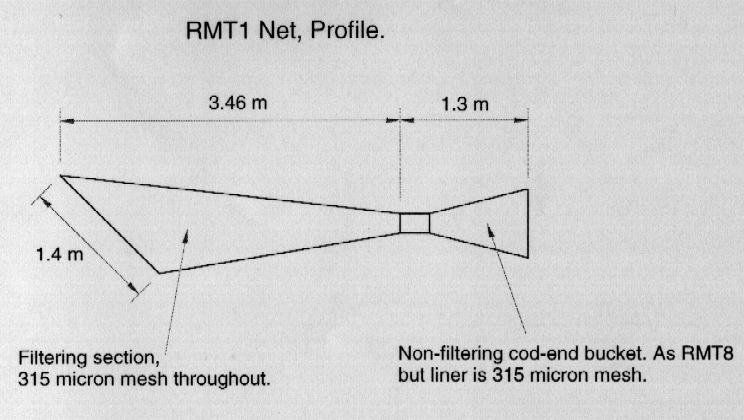

Dimensions of RMT1 are shown in the side view below

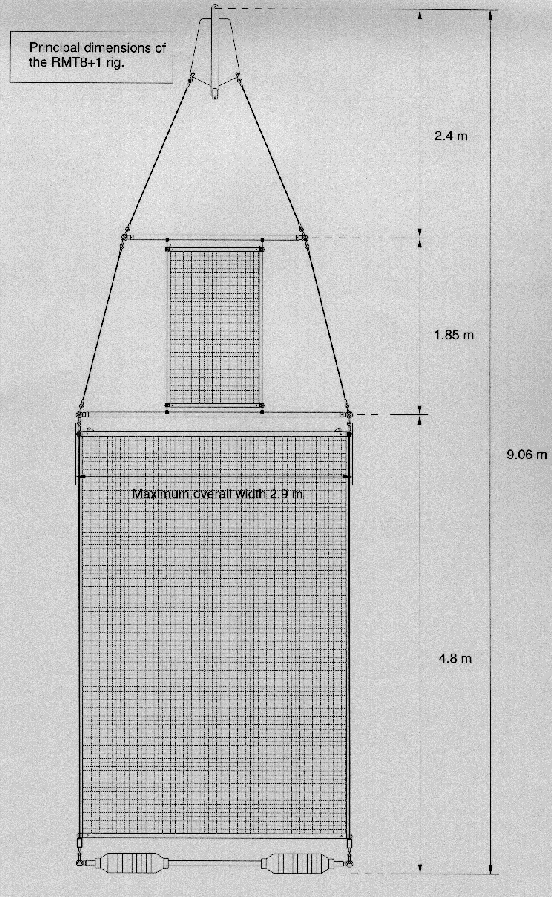

Front view of net showing main dimensions

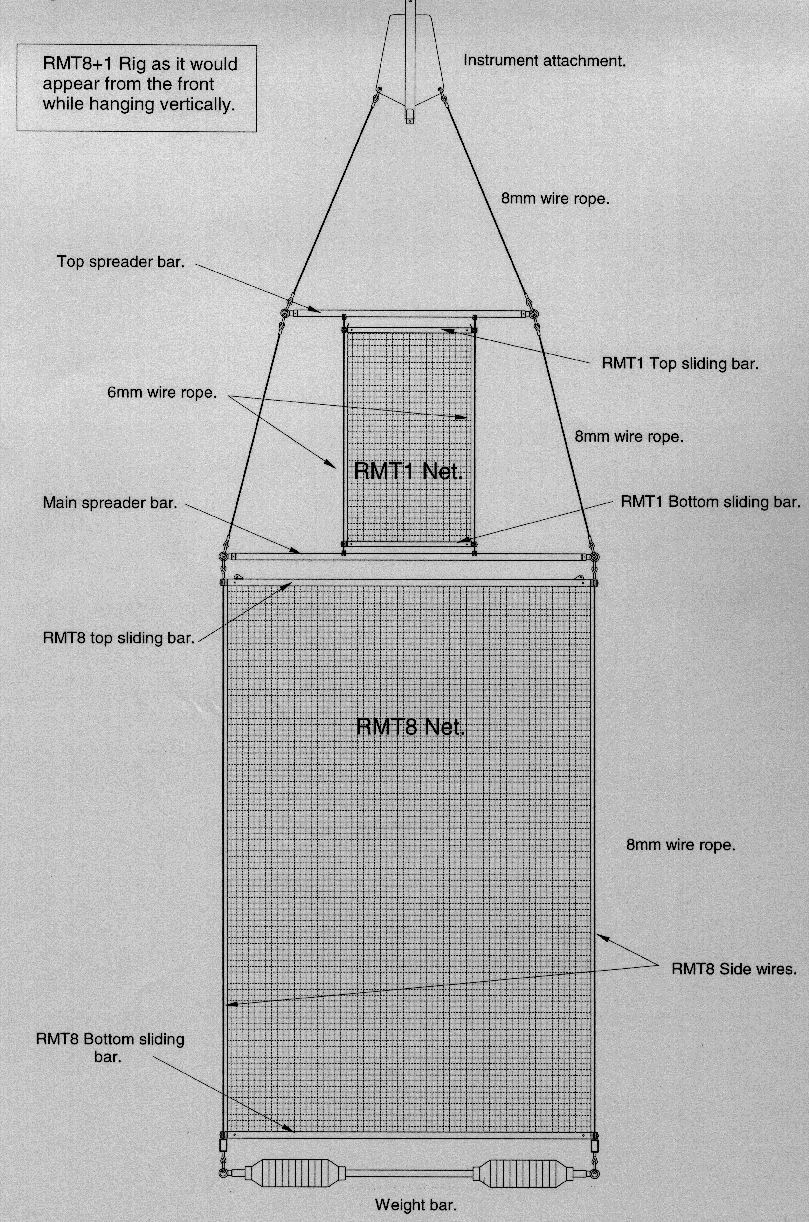

Front view of net with main parts identified
